iPhone 16e Battery Replacement
Use this guide to replace the battery in your iPhone 16e.
iPhone batteries are rated to hold 80% of their capacity for up to 500 charge cycles, or roughly 18–24 months. If your iPhone needs to be charged more often or runs slower, it might be time to replace the battery.
This iPhone, iPhone 16, and iPhone 16 Plus use a battery adhesive that requires an electrical charge to loosen it. Apple's repair manual recommends connecting a 9V battery for 90 seconds, but you can use a power supply or a power bank at a 5–20V output instead—the time required to loosen the adhesive will vary.
After completing this repair, you may receive warnings about your replacement part and lose access to battery health data, but your new battery will otherwise work normally. As of iOS 18.1, battery health works with both genuine and aftermarket replacement batteries. Run Repair Assistant to reset the battery metrics.
You'll need replacement back glass adhesive to complete this repair
Some photos may be from a different model; the procedure is the same.
Before you begin

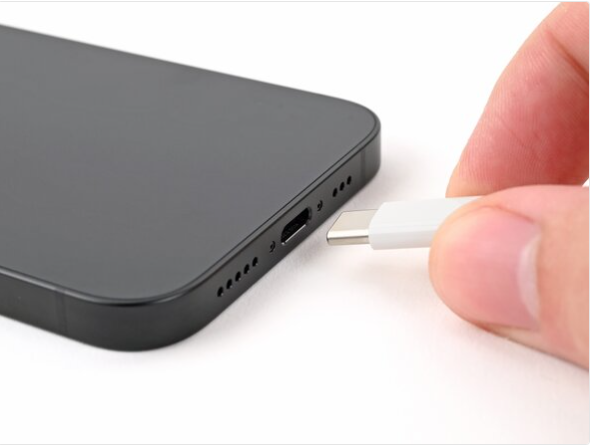

Keep your phone's battery below 25% and unplug all data cables from your phone, and then turn off your phone, as a fully charged lithium-ion battery can be unsafe.

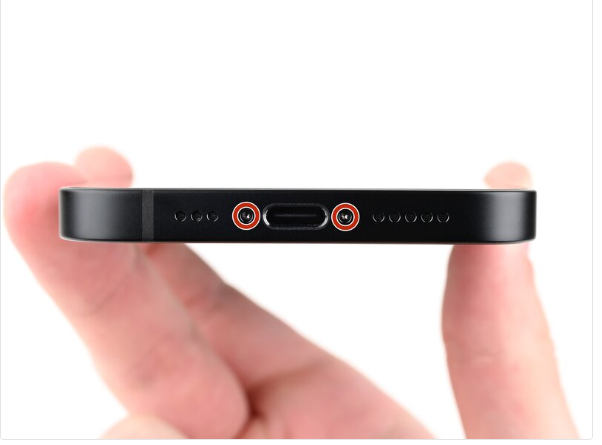

Remove the pentalobe screws

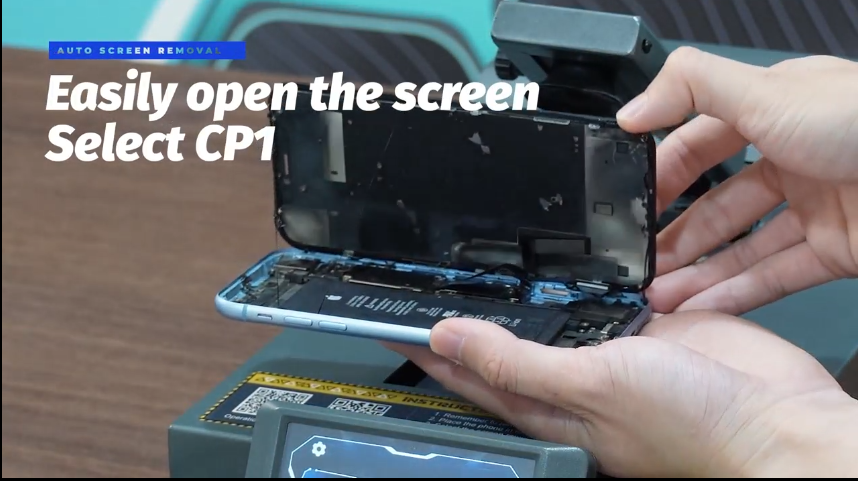

Removal the Screen
After setting the temperature and time, the machine will automatically and safely lift the phone screen when the preset time is reached.

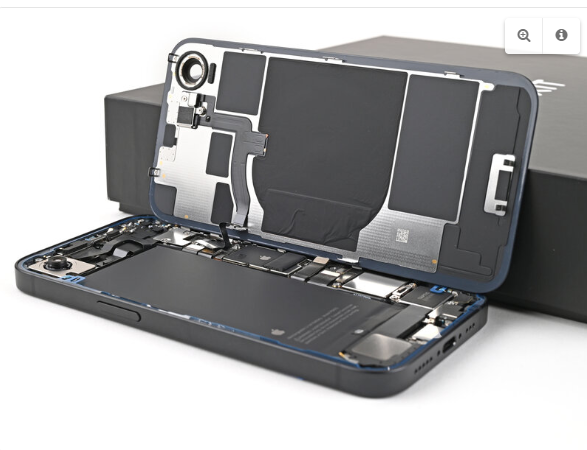

Separate the phone's back cover from the battery

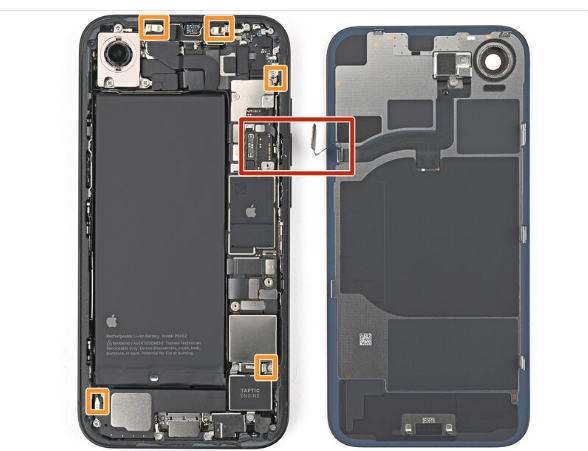

1. Remove the lower port cover screws, battery bracket, and battery.
2. Remove the middle port cover screws and the middle port cover.
3. Disconnect the wireless charging coil and remove the back gla

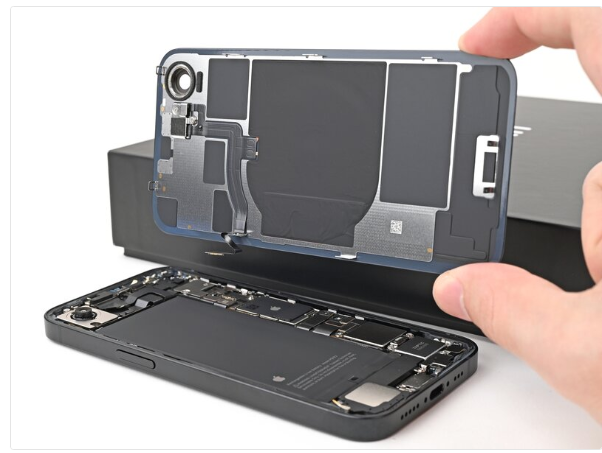

Remove the back glass
Lift the rear glass off the frame and remove it.
Peel up the battery cable adhesive and silver tab
Assemble the VoltClip
Don't connect the VoltClip to a power source yet. The alligator clips may touch each other and cause an electrical short.

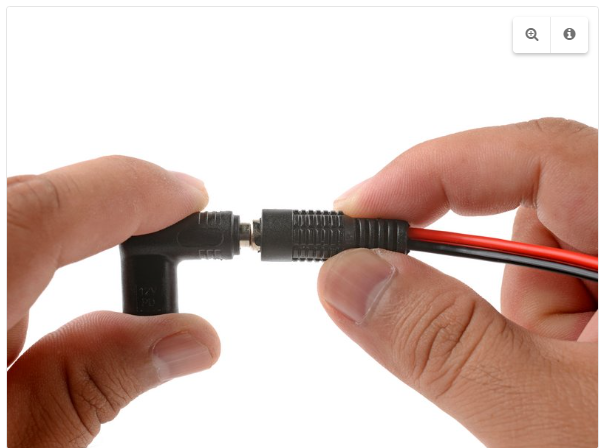

Plug the VoltClip's barrel connector into the USB-C elbow.

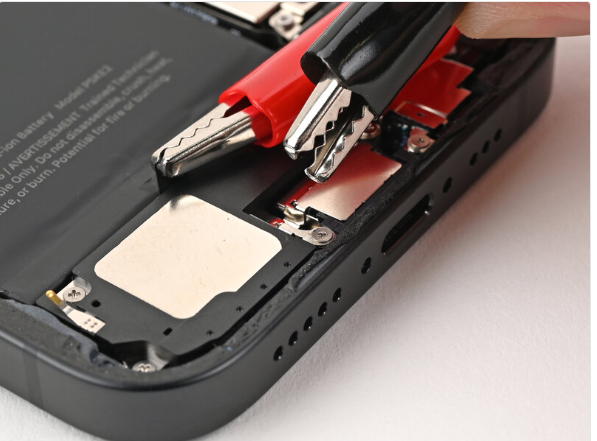

Attach the alligator clips
Attach the red alligator clip to the silver tab. Attach the black alligator clip to the metal tab on the bottom of the loudspeaker.

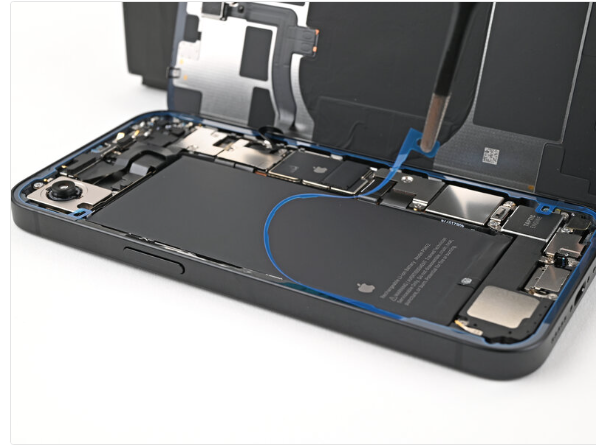

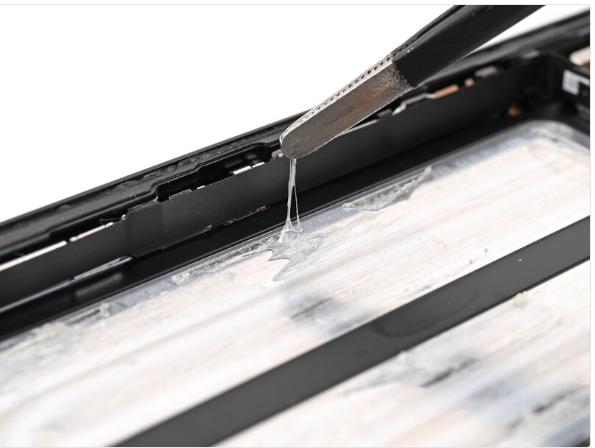

Remove the residual battery adhesive

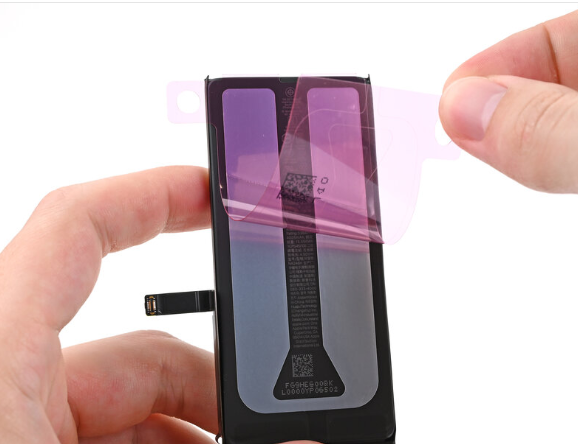

Remove the iPhone‑side liner

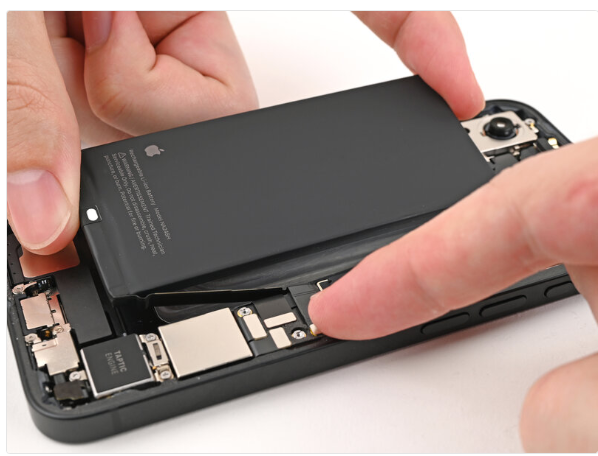

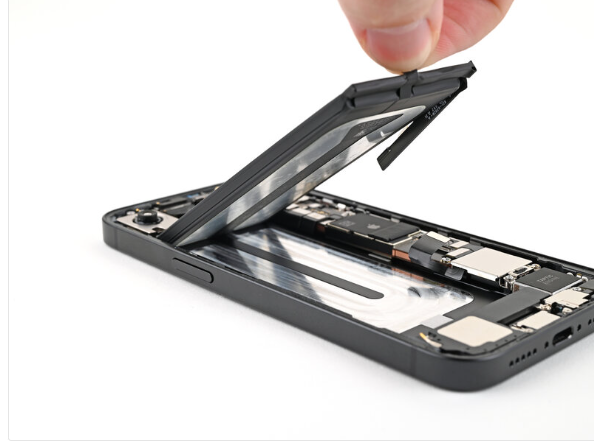

Place the battery

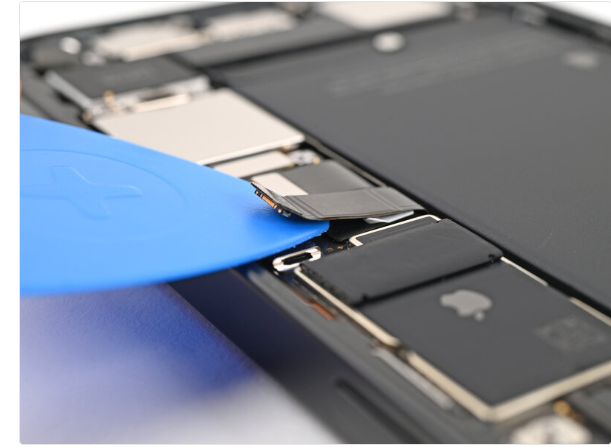

Then disconnect the battery;
Remove the residual frame adhesive

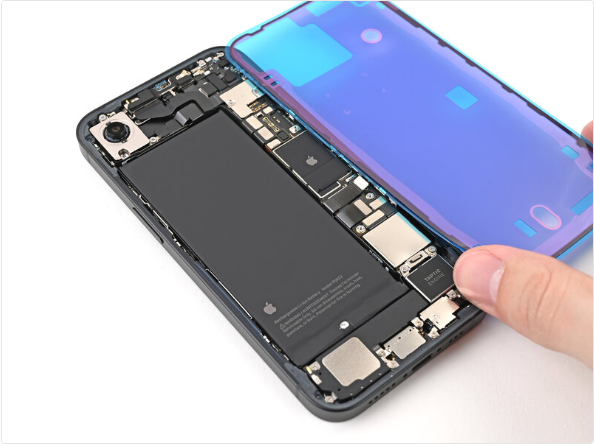

Orient the adhesive
Apply the adhesive,Press the adhesive into place
Connect the press connectors, Place the middle connector cover and lower connector cover, Install the cover screws

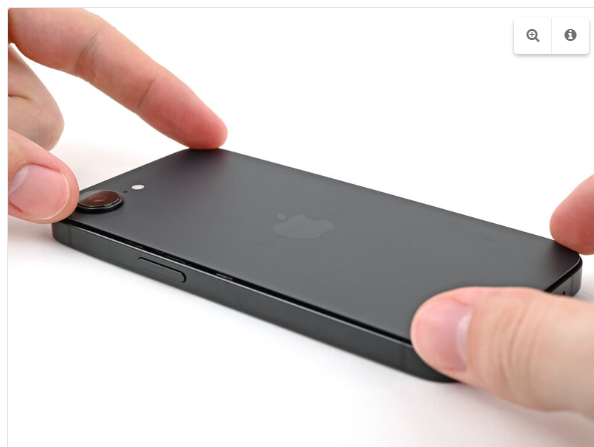

Remove the final liners, and then Place the back glass
- Lay the back glass straight down onto the frame and press until the clips engage.
- Press around the perimeter of the back glass to engage all clips.

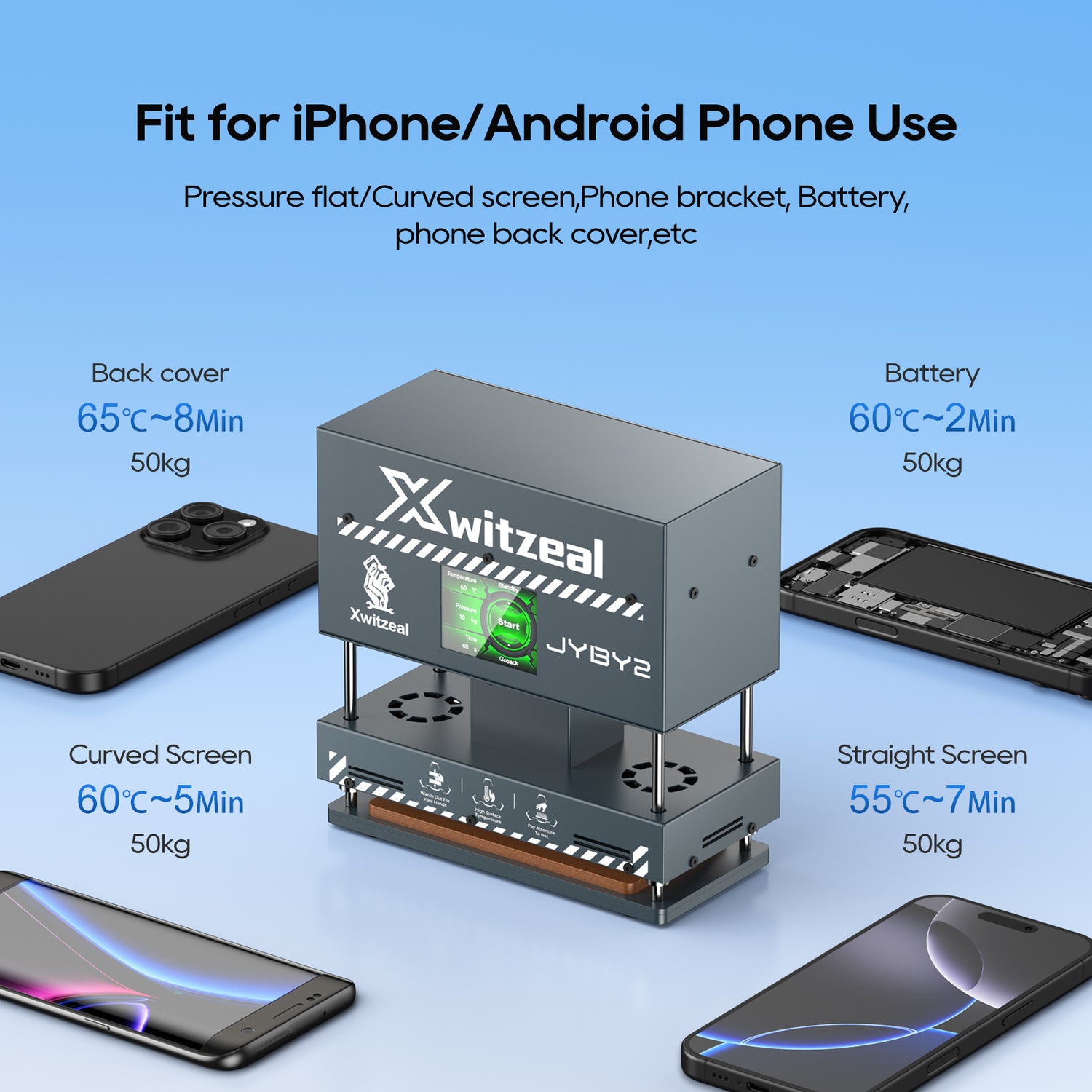

Use JYBY2 Machine to recover the phone's air tightness
